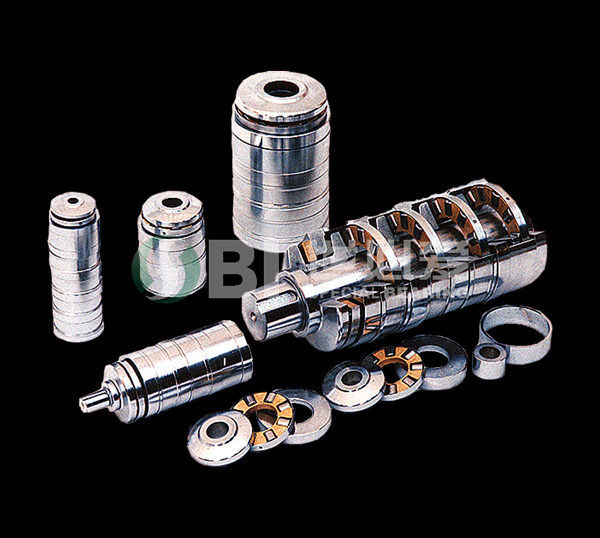

Multi-Stage cylindrical roller thrust bearings(Tandem bearings)

Back

Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.
The tandem bearings provided by our institute has the following types: double rows, three rows, four rows, five rows, six rows and eight rows, we also provided bearings with shaft and sleeve barrel. Customers can have their own selections according to center distance of screws, space and load (Figure 1~3). We also accept the orders of other dimensions.

Application of tandem bearings
   When using SBI tandem bearings, the following recommendations should be adhered to:
   1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing see Figure 1~3. Figures not listed will be provided by out institute on request.
   2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.
   3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
   4. Mounting tolerances: SBI recommended the following mounting tolerances: shaft f6 and housing bore F7.
   5. Lubrication: tandem bearings must always be lubricated by oil circulation (Figure 4)

Request a Quote Consultation
Products Class of This Type
Basic type Multi-Stage Cylindrical Roller Thrust Bearings Shaft type Multi-Stage Cylindrical Roller Thrust Bearings Sleeve type Multi-Stage Cylindrical Roller Thrust Bearings
